1700C 1800c 1900C 12/24mm Mosi2 Heating Elements
12/24mm Mosi2 Heating Elements Application:
SUPER Mosi2 1700 and 1800 type 12/24mm muffle furnace heating elements are widely used in metallurgy, glass, refractory ceramics, crystal electronic devices, industrial furnace manufacturing and other industries. It is an ideal and necessary element when sintering products. at high temperatures.
Note: MoSi2 components cannot be used for a long time between 400-700℃, otherwise they will be damaged due to strong oxidation at low temperatures and electricity.
* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
12/24mm Mosi2 Heating Elements have good resistance characteristic, so it is an ideal heating material to replace traditional heating elements.
At room temperature, its resistivity is very low, with the increase of temperature, the resistance increases sharply. The advantages of heating up fast and low power consumption are obvious.In normal operating circumstances, the resistance of the element is constant, so the old and new components can be mixed.
Standard sizes of 12/24mm Mosi2 Heating Elements
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Specification of 12/24mm Mosi2 Heating Elements:
| | 1700°C Grade | 1800°C Grade |
| d/c (mm) | 3/6 | 4/9 | 6/12 | 9/18 | 12/24 | 3/6 | 4/9 | 6/12 | 9/18 | 12/24 |
| Le Max,mm | 350 | 450 | 1400 | 1400 | 1700 | 350 | 450 | 1400 | 1400 | 1700 |
| Lu Max,mm | 300 | 450 | 1000 | 1000 | 1000 | 300 | 450 | 1000 | 1000 | 1000 |
| a (mm) | 25 | 25 | 40/50 | 60 | 80 | 25 | 25 | 40/50 | 60 | 80 |
| g (mm) | 15 | 15 | 25 | 30 | 40 | 15 | 15 | 25 | 30 | 40 |
| Nonstandard shape & size could be made according to your requirement |

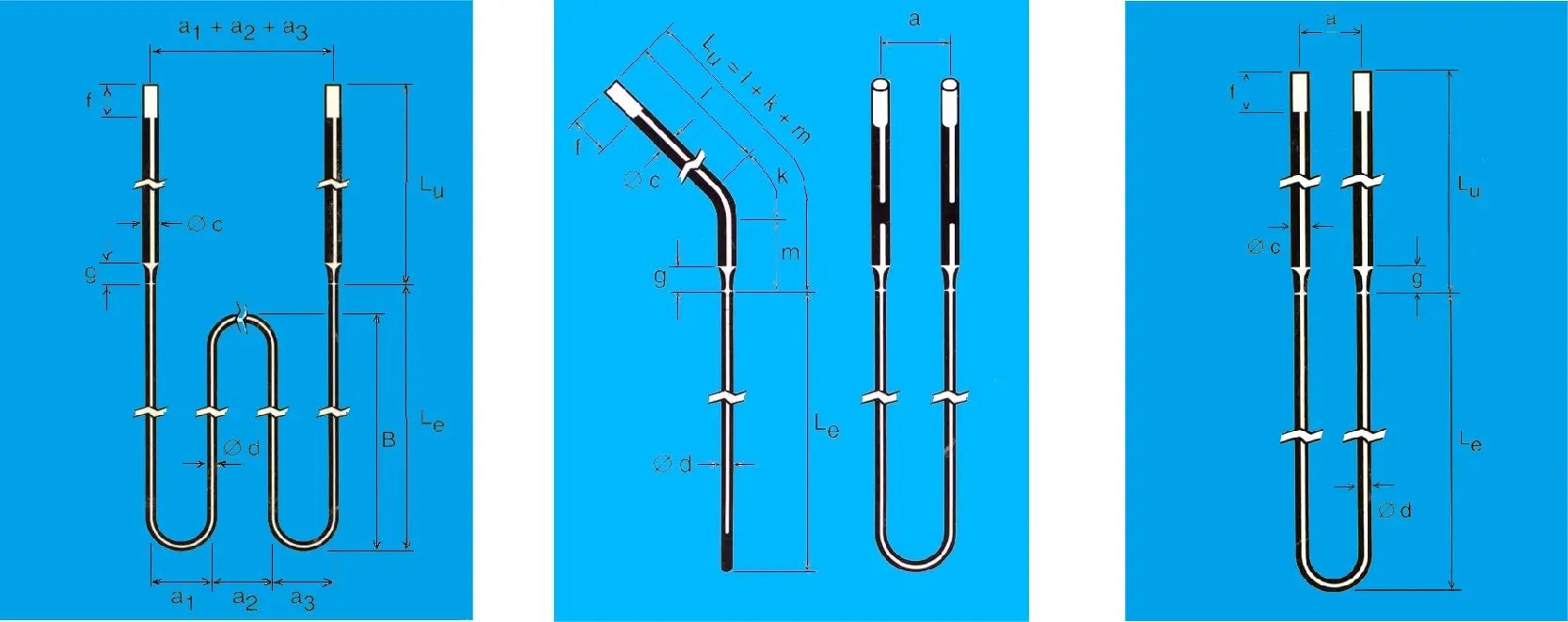

d = the diameter of hot zone
c = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone
a=Shank spacing
g=junction length
Physcial Property of 12/24mm Mosi2 Heating Elements:
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
Packing and shipping for the heater :
Export carton packing box for small qty;
Export wooden packing box for large qty.
Fedex/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods;
Customers specifying freight forwarders or negotiable shipping methods;
Delivery Time: 3-7 days for samples; 5-15 days for batch goods.
