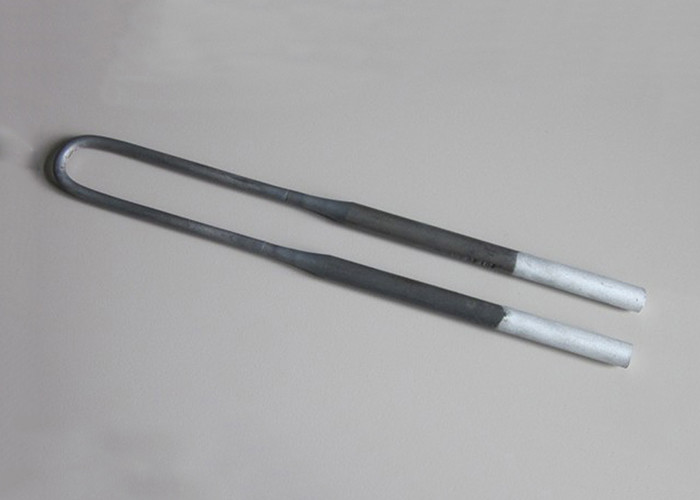

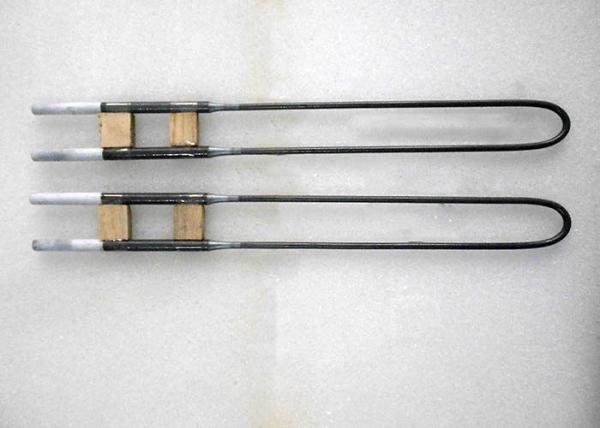

Resistance Heating Furnace MoSi2 Heating Element 12/24mm Large Size
MoSi2 Heating Element Introduction
Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material. When it's heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1900°C, the applicable temperature is between 500-1800°C.
* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
MoSi2 heating element have good resistance characteristic, so it is an ideal heating material to replace traditional heating elements.
At room temperature, its resistivity is very low, with the increase of temperature, the resistance increases sharply. The advantages of heating up fast and low power consumption are obvious.
In normal operating circumstances, the resistance of the element is constant, so the old and new components can be mixed.
Physcial property of 1800C MoSi2 heating element:
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
Operation temperature of MoSi2 heating element in different atmosphere
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700 | 1800 |
| N2 | 1600 | 1700 |
| He | 1600 | 1700 |
| -80°C Dry H2 | 1150 | 1150 |
| -20°C Wet H2 | 1450 | 1450 |
| 10%CO2, 50%CO, 15%H2 | 1600 | 1700 |
| 40%CO2, 20%CO | 1400 | 1450 |
| Cracked and Partially Burnt Ammnia | 1400 | 1450 |
Packaging & Shipping
Package: Package: Synthetic wooden case padded with foams
We also received OEM service; the package can be designed according to your requirements.
Shipping: By vessel or by plane from any Chinese port, Samples can be delivered by International express.
Our Services
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
